FINAL PRODUCT
Unattached assembled product without adapter
PRODUCT INSTALLED
Final product installed on lowest-tier tandem stroller - hooks were designed to allow brake bar to function.
RAPID PROTOTYPING
Some of the collection of mechanical concepts evaluated prior to final design.
ENGINEERING PROTOTYPE
Final Aesthetic approval model.
COMPATIBILITY INSTRUCTION
Matrix of compatibility to show which parts were needed for each model of stroller. Three sets of flexible inserts were provided in order to fit 3 different axel sizes.
INSTALLING ADAPTER
Installation process for assembling adapter onto the large rear wheel brake tube on the Options Elite v2 stroller
STOWED
A lanyard was provided to lift the platform off the ground when not in use.
EASY CONNECTION
The hooks easily latch onto the adapter securely - this connection was verified on treadmill and road testing.

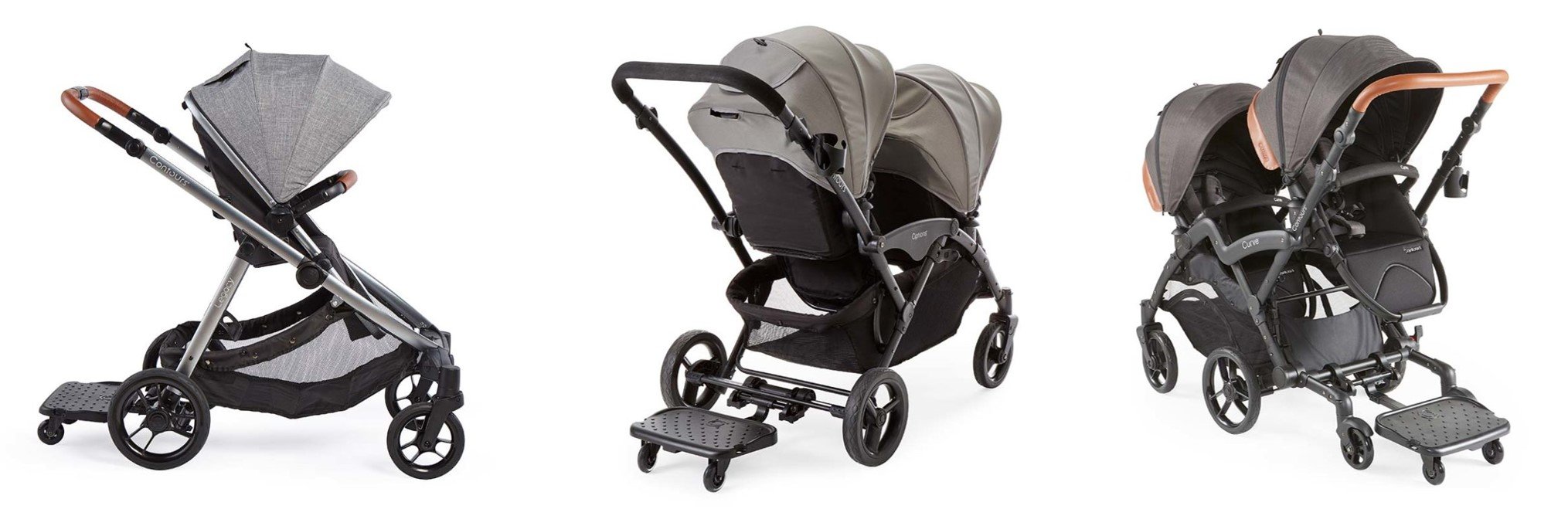

INSTALLED ON OTHER STROLLERS
Shown on Contours Legacy, Options v2 and Curve v2 strollers
