By Heathrow Scientific

The expanding storage boxes were developed to reduce sample handling time in medical and scientific laboratories. Typically, cold storage samples are stored in boxes from which as many as 144 vials would need to be transferred to a working rack which separates the vials to prevent cross-contamination and improve sample manipulation. The goal of this project was to be inspired by a Hoberman sphere and create a solution which would span storage to working and back in one product. This product has United States Patent US20130330254A1.

PRODUCT RENDER

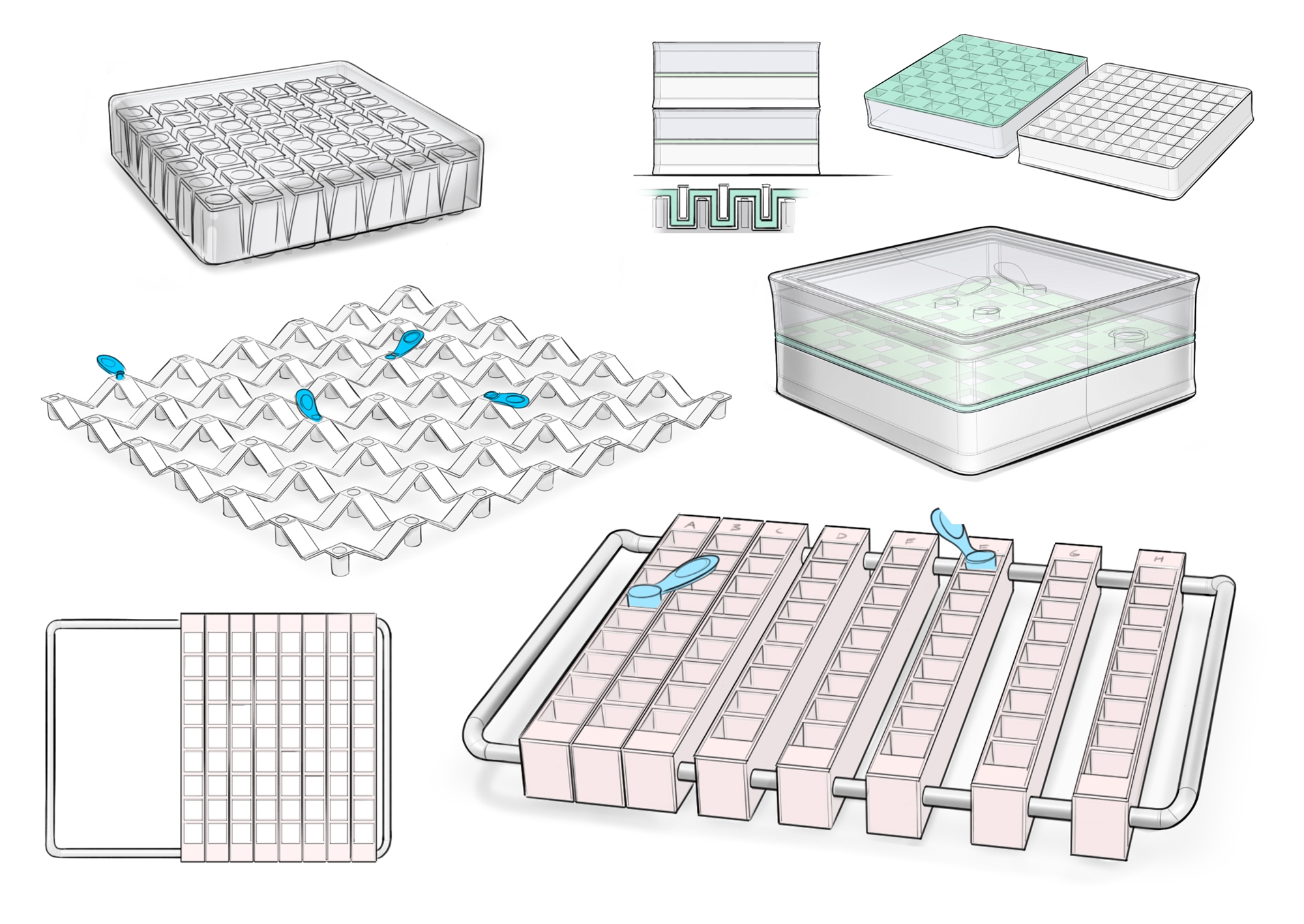

A photorealistic render of the final work 2 store concept

BRAINSTORMING

Brainstorming and documenting concepts with potential.

MOCKING UP CONCEPTS

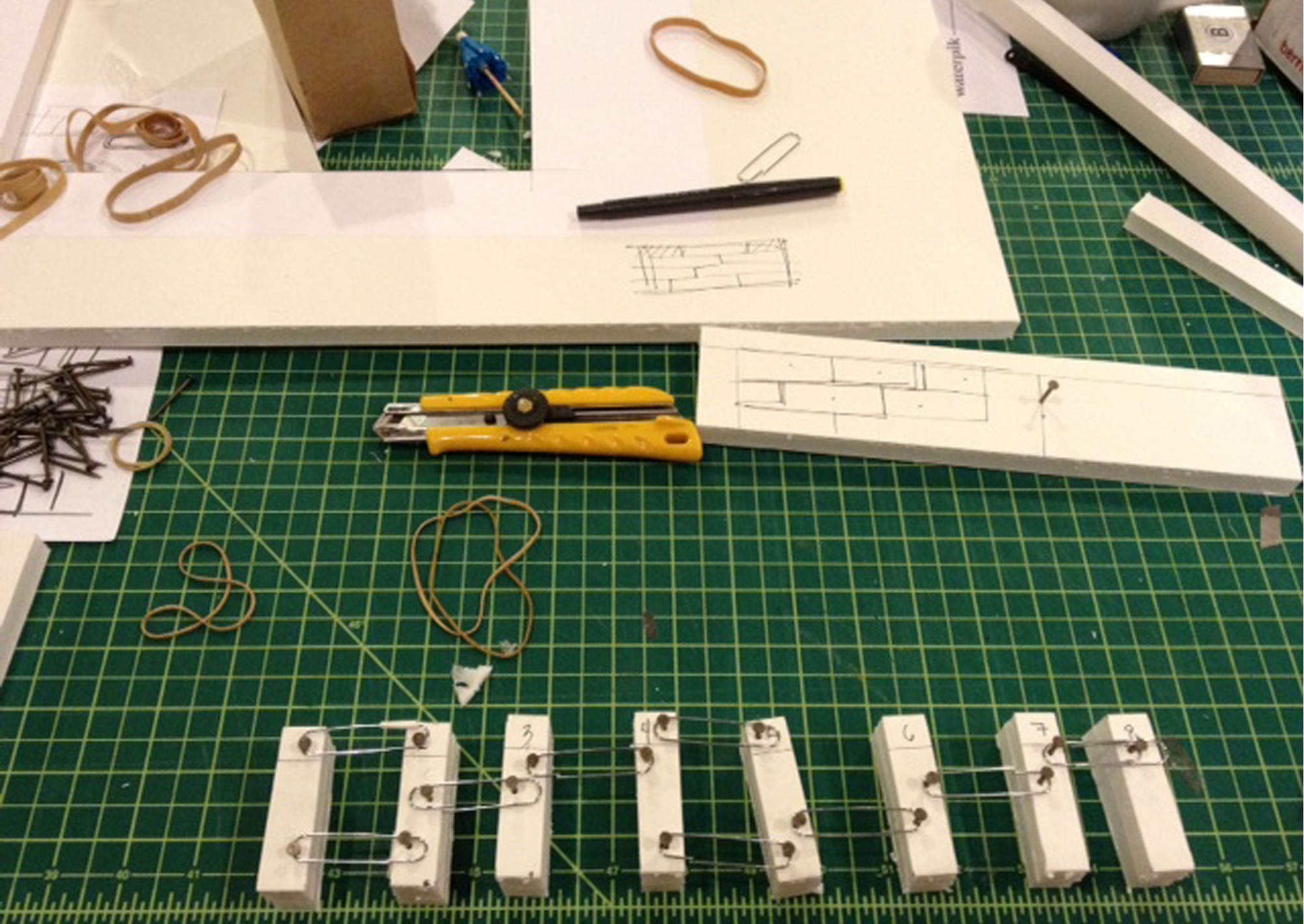

The team mocked up a side view using pins and paper clips to visualize how each element would interact.

PROBLEM CONTEXT RESEARCH

Researching the context in which this product would be used, helping us develop our design constraints.

DEVLOPING ON BRAINSTORM

Working with our team on developing strong ideas from the brainstorm, to be illustrated by our Designers.

DRAWING PACKAGE

After several prototypes were evaluated, the design was finalized and a Bill of Materials and drawing package for each part was developed to ensure critical dimensions were maintained.
